Arix Blades

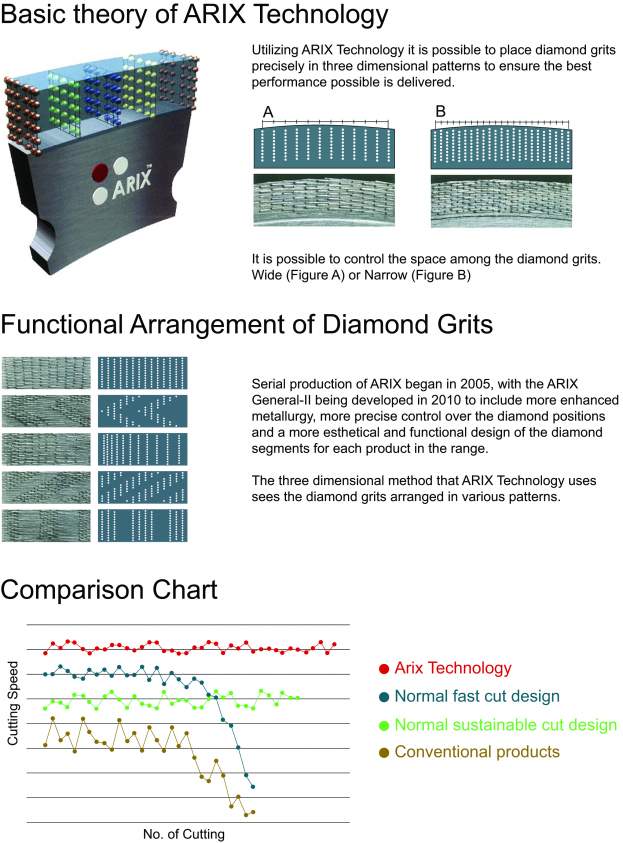

The Arix Theory

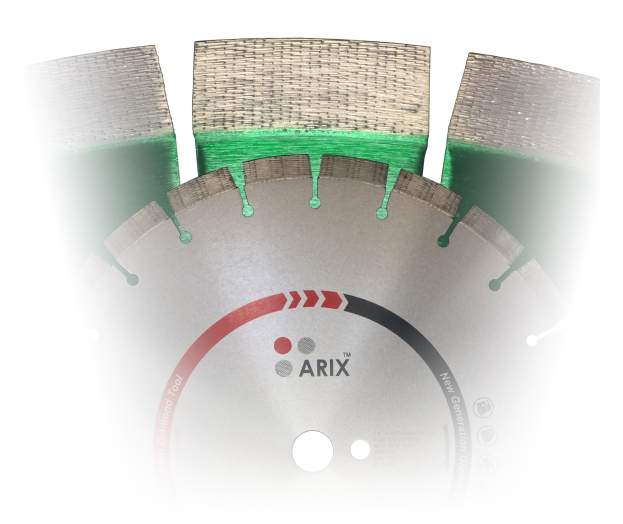

Asahi sell a range of premium Arix Blades all of which have been manufactured using the latest 3D 'arranged' diamond technology. This involves diamonds being placed precisely in a three dimensional pattern to ensure the best performance possible is delivered.
Serial production of Arix began in 2005, with the Arix General-II being developed in 2010 to include even more enhanced metallurgy, more precise control over the diamond positions and a more esthetical and functional design of the diamond segments. Arix blades are the most efficient on the market providing optimum cutting while maintaining blade life. The Asahi range includes:
Hand, Floor and Wall Saws
Designed for a wide range of masonry materials.
Blade Type |
Diameter |
Segment |
Segment Type |
||
|---|---|---|---|---|---|
| (mm) | (in) | T | W | ||
| Hand Saw | 350 | 14" | 3.2mm | 10.00mm | Turbo |
| Hand Saw | 416 | 16" | 3.6mm | 10.00mm | Turbo |

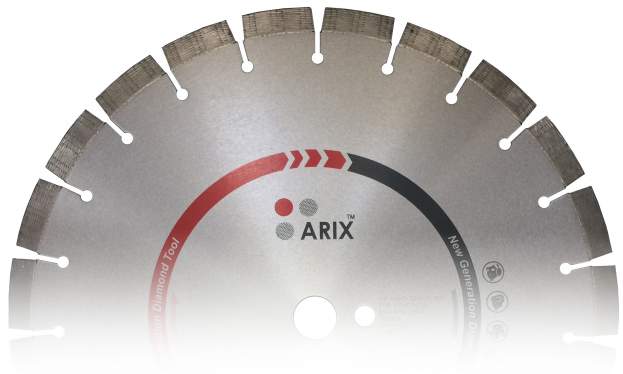

| Floor Saw | 460 | 18" | 4.00mm | 13.00mm | Standard Arix |
| Floor Saw | 500 | 20" | 4.00mm | 13.00mm | Standard Arix |
| Floor Saw | 600 | 24" | 4.00mm | 13.00mm | Standard Arix |
| Floor Saw | 750 | 30" | 4.00mm | 13.00mm | Standard Arix |
| Floor Saw | 800 | 32" | 4.00mm | 13.00mm | Standard Arix |

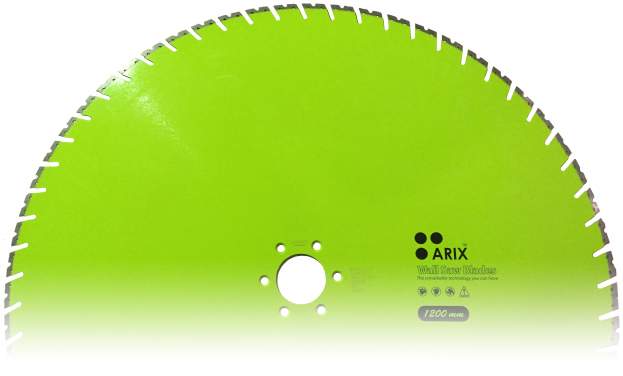

| Wall Saw | 1000 | 40" | 4.40mm | 12.00mm | Su-Notch |
| Wall Saw | 1200 | 48" | 4.40mm | 12.00mm | Su-Notch |

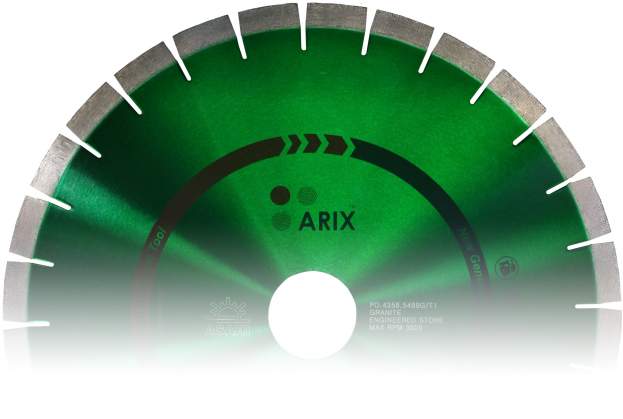

Granite Saws
A silent saw blade designed for cutting granite and reconstituted stone.
Diameter |
Segment |
Bore Size |
||
|---|---|---|---|---|
| (mm) | (in.) | T | W | (mm) |
| 370 | 14" | 3.2mm | 15.0mm | 60 |
| 415 | 16" | 3.2mm | 15.0mm | 60 |
| 415 | 16" | 3.2mm | 15.0mm | 60 |
| 470 | 18" | 3.2mm | 15.0mm | 60 |
| 470 | 18" | 3.2mm | 15.0mm | 60 |
| 470 | 18" | 3.2mm | 15.0mm | 90 |
| 508 | 20" | 4.0mm | 15.0mm | 60 |
| 600 | 24" | 4.4mm | 15.0mm | 100 |
|
Asahi Arix Blades aren't currently available to buy online. |
|---|
