Marble Blades
Marble Cutting Blades
Asahi Marble Cutting Blades are specifically designed for polished marble bench tops.
Designed for cutting materials including: Polished marble bench tops.
Diameter |
Segment |
Bore Size |
Segment |
||
|---|---|---|---|---|---|
| (mm) | (in.) | T | W | (mm) | |
| 300 | 12" | 2.0mm | 7.0mm | 25.4 | Laser Cut Air Hole |
| 350 | 14" | 2.4mm | 7.0mm | 25.4 | Laser Cut Air Hole |
| 400 | 16" | 3.2mm | 8.0mm | 60 | Silent |
| 455 | 18" | 3.4mm | 7.0mm | 60 | Silent |
| 455 | 18" | 3.4mm | 7.0mm | 60 | Silent |
| 495 | 20" | 4.0mm | 7.0mm | 60 | Silent |
| 650 | 26" | 4.4mm | 10.0mm | 60 | Silent |

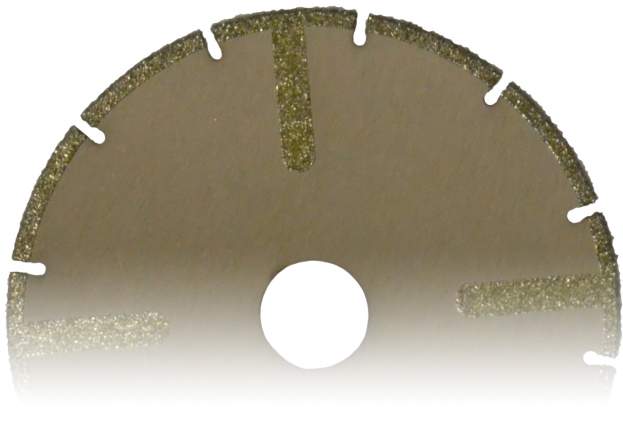

Electroplated Diamond Blades
Asahi Electroplated Blades are Ideal for marble cutting and trimming applications.
Designed for cutting materials including: Marble, fiberglass and fiber-reinforced plastic.
Diameter |
Bore Size |
Description |
|
|---|---|---|---|
| (mm) | (in.) | (mm) | |
| 100 | 4" | 20 | Plated |
| 125 | 5" | 22.23/20 | Plated |

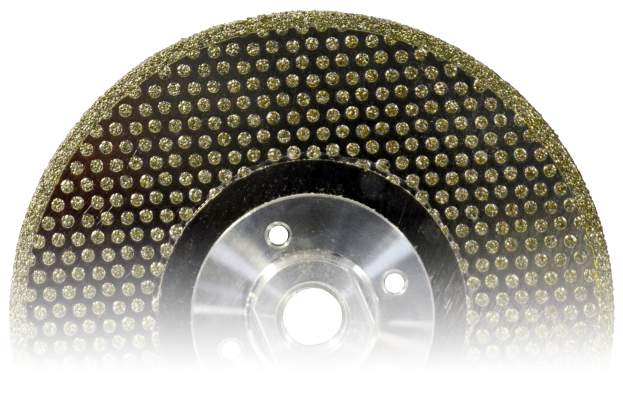

Electroplated Flush Cut Blades with Flange
Designed with a fixing M14 flange, Asahi Electroplated Flush Cut Diamond Blades are ideal for marble cutting and trimming applications.
Designed for cutting materials including: Marble, fiberglass and fiber-reinforced plastic.
Diameter |
Shape |
Mounting | |
|---|---|---|---|
| (mm) | (in.) | ||
| 125 | 5" | Flat continuous rim | M14 Flange |

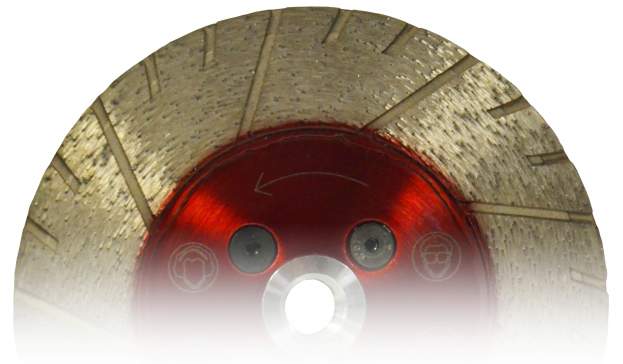

Multi Cutter Blade with Flange
Asahi flange mounted Multi Cutter Blades have extended diamond coverage enabling grinding and bulk removal of material.
Designed for cutting materials including: Granite and marble through to sandstone.
Diameter |
Segment |
Mounting | ||
|---|---|---|---|---|
| (mm) | (in.) | T | W | |
| 125 | 5" | 2.4mm | 7.5mm | M14 Flange |
| 230 | 9" | 3.0mm | 8.0mm | M14 Flange |
|
Asahi Marble Blades aren't currently available to buy online. |
|---|
