Grinding Products



Asahi stock a wide range of professional diamond products for grinding different types of stone i.e. granite, marble, concrete, sandstone and many more.

Many of our products can be re-tipped, refurbished and repaired at our Sydney factory. Click here for more information.

Our range includes:

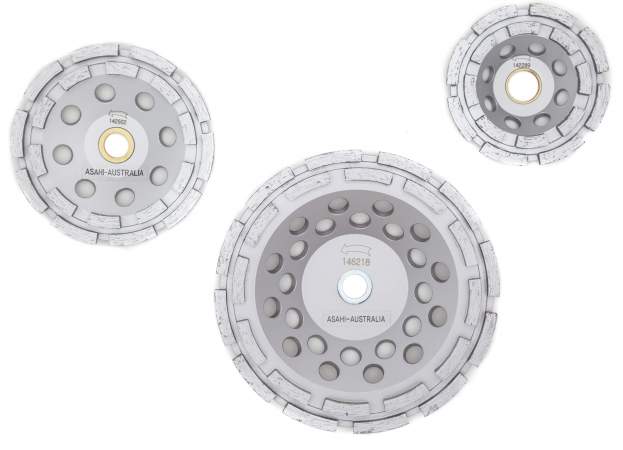

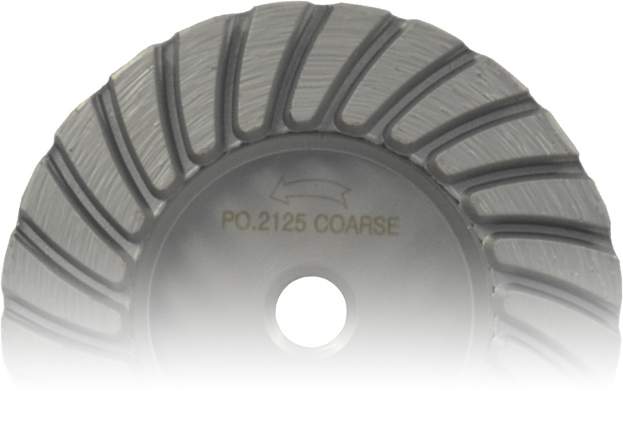

Turbo Cup Grinders

Asahi Turbo Cup Grinders are perfect for shaping and polishing granite, composite stones, marble, concrete and sandstone. They are available in coarse, medium and fine diamond grit with bond specifications suited to all types of stone.
*AVAILABLE TO BUY ONLINE VIA THIS PAGE*

Diameter

Grit Size

Material

Mounting

(mm) (in)
100 4" 40 Sandstone M14
125 5" 40 Sandstone M14
150 6" 40 Sandstone M14
100 4" 40 Granite M14
100 4" 60 Granite M14
100 4" 120 Granite M14
100 4" 40 Granite Snail Back
100 4" 120 Granite Snail Back


Concrete Cup Grinding Wheels

Asahi Concrete Cup Grinding Wheels are specifically designed for the efficient grinding and chamfering of various concrete and masonry materials.
*AVAILABLE TO BUY ONLINE VIA THIS PAGE*

Diameter

Type

Mounting

(mm) (in)
103 4" Double row 22.23H
125 5" Double row 22.23H
180 7" Double row 22.23H

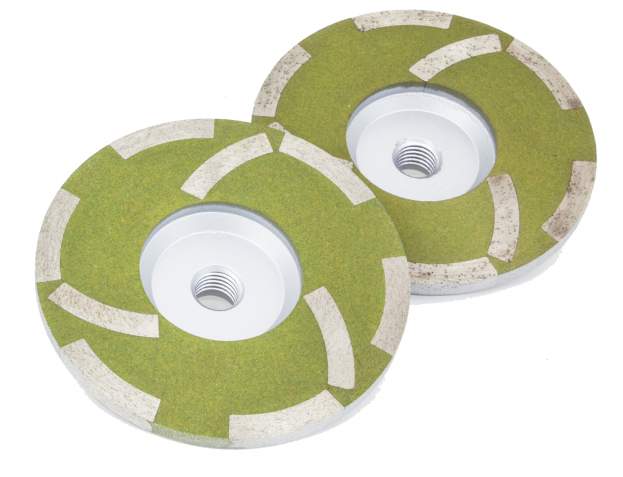

Resin Filled Grinding Wheels

Asahi Resin Filled Grinding Wheels eliminate bouncing and chipping for fast, easy smoothing and shaping. Available in coarse, medium and fine diamond grit with bond specifications suited to all stones and many different applications.
*AVAILABLE TO BUY ONLINE VIA THIS PAGE*

Diameter

Grit Size

Type

Mounting

(mm) (in)
103 4" 50 Full Cup M14
103 4" 80 Full Cup M14
103 4" 120 Full Cup M14
100 4" 50 Full Cup Magnetic
100 4" 80 Full Cup Magnetic
100 4" 120 Full Cup Magnetic
100 4" 20 Full Cup Magnetic
100 4" 60 Full Cup Magnetic
100 4" 120 Full Cup Magnetic
100 4" 200 Full Cup Magnetic
100 4" 400 Full Cup Magnetic

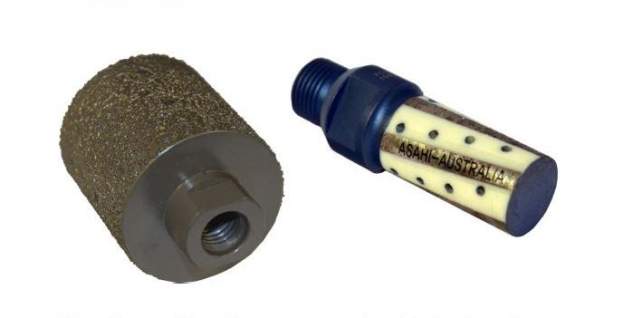

Internal Grinders

Asahi's range of Internal Grinders are used for shaping and polishing all types of stone. They are available in 'coarse' and can be used with angle grinders, hand held air tools and CNC machines.

Diameter

Type

Connection

(mm) (in)
15 19/32" BT M14
20 25/32" BT M14
20 25/32"   1/2" BSP
25 1" BT M14
25 1" Resin 1/2" BSP
35 1 3/8" BT M14
50 2" BT M14

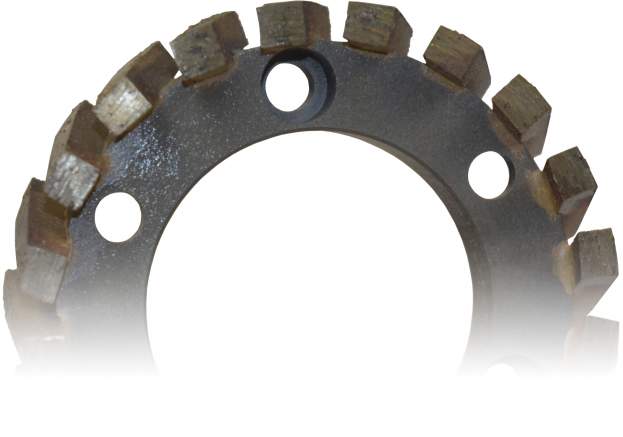

Stubbing Wheels

Asahi Stubbing Wheels are designed for use with CNC machines for the grinding and profiling of materials such as sandstone, granite and marble.

Diameter (mm)

Segments

Material

Hole

88 20 Granite 3 + 3
88 20 Sandstone 3 + 3

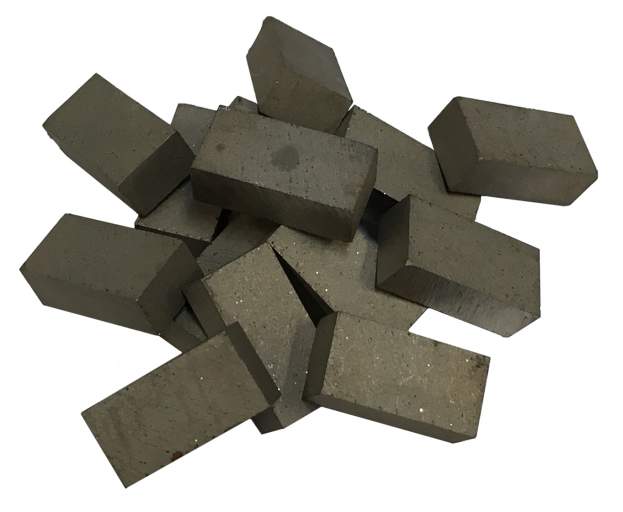

Grinding Shoe Segments

Individual metal bond diamond segments for braze attachment to grinding shoes (metal bond only). Available in coarse, medium, and fine diamond grit with bond specifications suited to all stones and many different applications.

Size

Grit Size

Description

40 x 10 x 10 30 - 40 Coarse
40 x 10 x 10 60 - 80 Medium
40 x 10 x 10 80 - 100 Fine

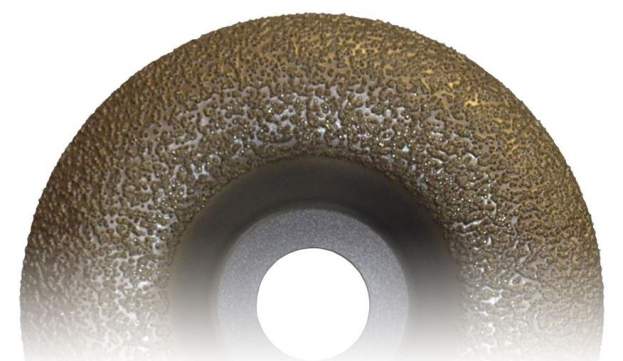

Vacuum Brazed Diamond Wheels

Our Convex Diamond Wheels are the ideal curve grinding tool for grinding circles in all types of granite and reconstituted stone bench tops once the cut-out has been removed.

Diameter

Shape

Style

Bore Size
(mm)

(mm) (in)
115 4.5" Convex BT 22.23/20



Currently, only Concrete Cup Grinding Wheels, Turbo Cup Grinders
and Resin Filled Grinding Wheels are available to buy online.
To make an enquiry or to purchase our other Grinding Products
please contact us:  02 9997 7033 / sales@asahi-diamond.com.au
