Impregnated
Impregnated Dressers

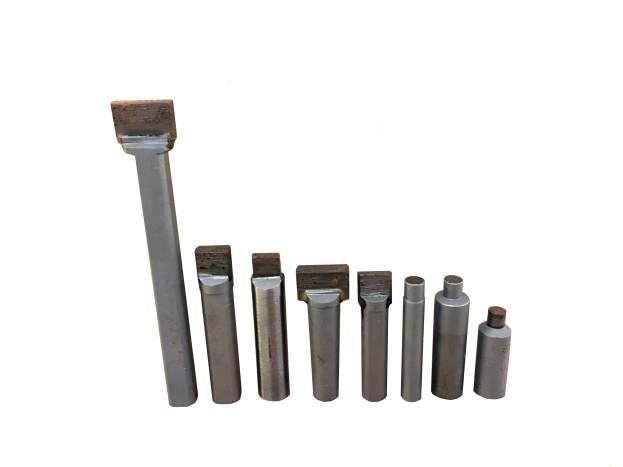

Asahi Impregnated Dressers have Diamonds mounted in a matrix to form several layers. As the diamonds in the first layer are worn out they are stripped and new sharp diamonds are exposed.
The quality of the Impregnated Dresser can be fully controlled in production providing economy and reliability.
Wheel grain size |
Grit symbol |
||
|---|---|---|---|
| 54 grit 8 and coarser | C | ||
| 60 - 80 grit | M | ||
| 90 grit and finer | F |
Diamond section |
Shank |
Grit |
||
|---|---|---|---|---|

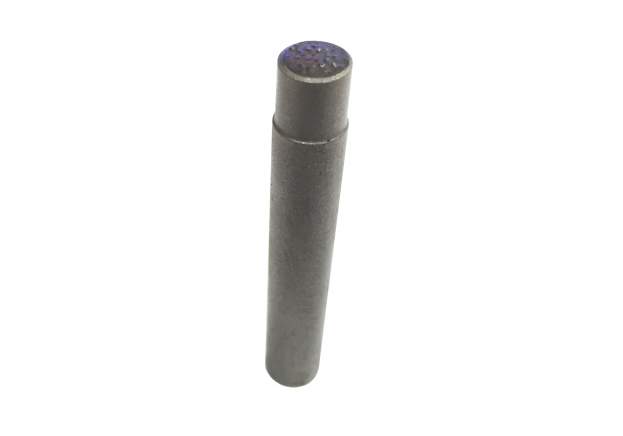

| 6.35mm dia | 8dia x 50mm | C | ||
| 6.35mm dia | 12dia x 30mm | M | ||
| 6.35mm dia | 12.7dia x 50mm | C | ||
| 9.35mm dia | 12 dia x 50mm | C | ||
| 15mm dia | 9.53dia x 50mm | C | ||
| 15mm dia | 11dia x 50mm | C | ||
| 6.35 x 12.7mm | 9.35dia x 50mm | C | ||

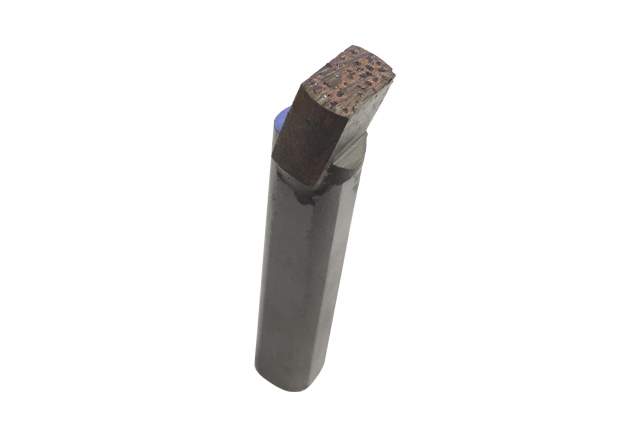

| 6.35 x 12.7mm (15 deg) | 11.11dia x 38mm | C | ||
| 6.35 x 12.7mm | 12.7dia x 50mm | C | ||
| 6.35 x 19.05mm | 12.7dia x 100mm | C | ||
| 6.35 x 19.05mm | Morse Taper 1 | C | ||
|
If you can't find the Impregnated Dresser that you are looking for, |
|---|
